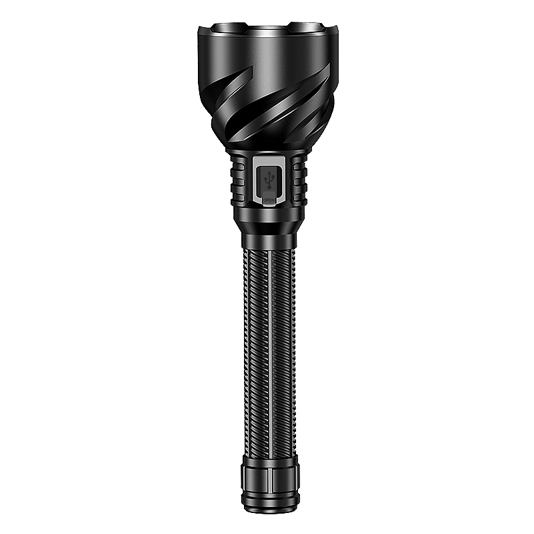

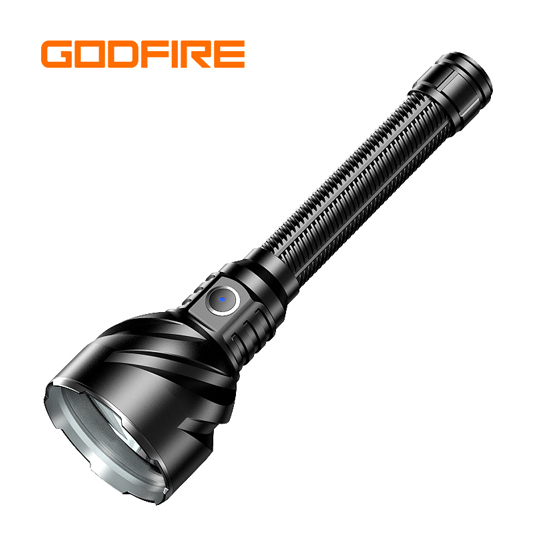

TF02 High-End Long-Range Flashlight

Usage Instructions

1. Lighting Modes

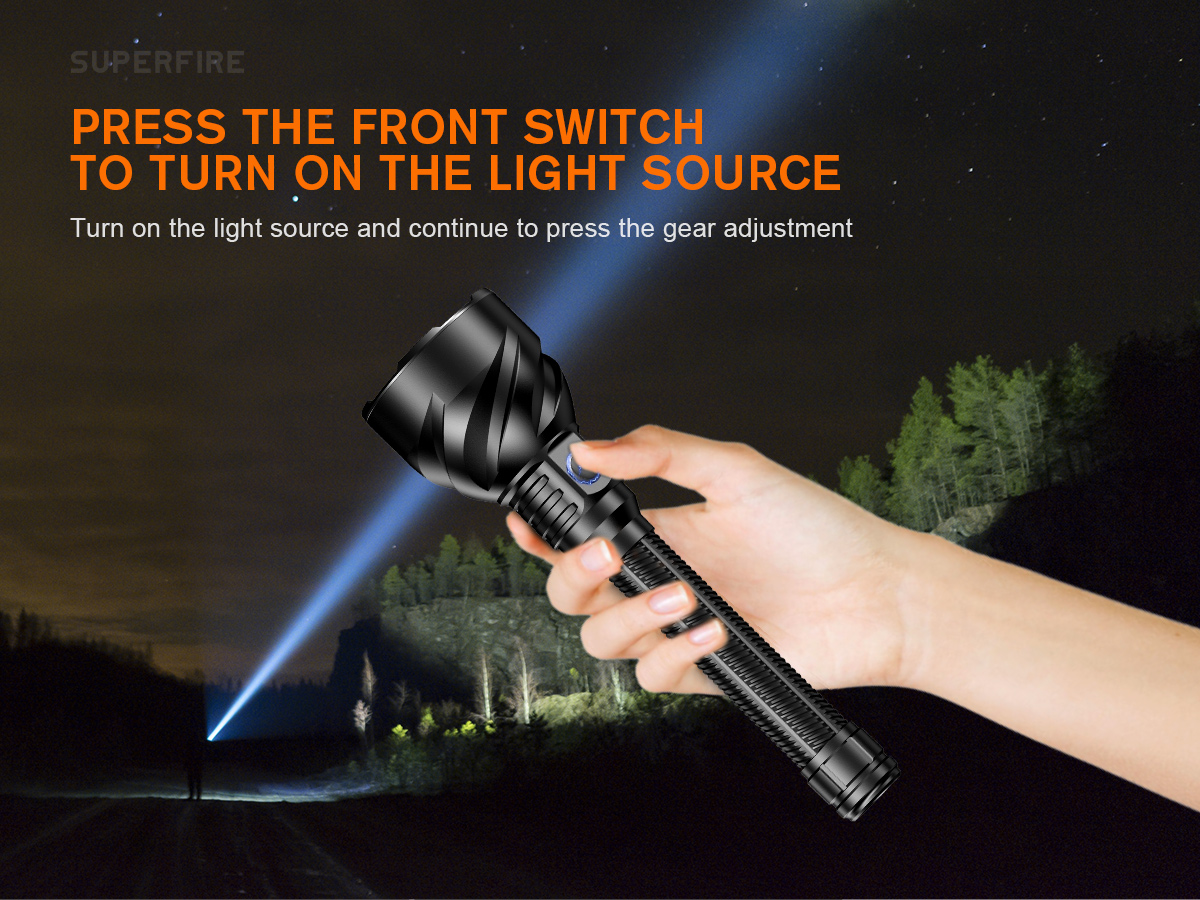

• Turn On: Press the front switch to activate (starts in Low mode).

• Cycle Modes: Press the switch repeatedly to cycle through: Low → Medium → High → Strobe → SOS → Off.

• Quick Off: Long-press (3 seconds) in any mode to turn off.

2. Power Bank Mode

• Activate: Double-click the front switch to enable discharge mode (4.5V/2.4A output).

• Deactivate: Double-click again to turn off discharge mode.

3. Charging

Connect the included 1250px Type-C cable to the flashlight and a power source (5V/2A).

Charging Indicator:

• Red light: Charging in progress.

• Green light: Fully charged (disconnect to stop).

1. Ultra-Bright Long-Range Illumination:

• 3300 lumens output with a 1100-meter beam (302500 candela) via a large metal reflector.

• Luminus SFT-70X-WXS LED ensures consistent, high-quality white light (6956K).

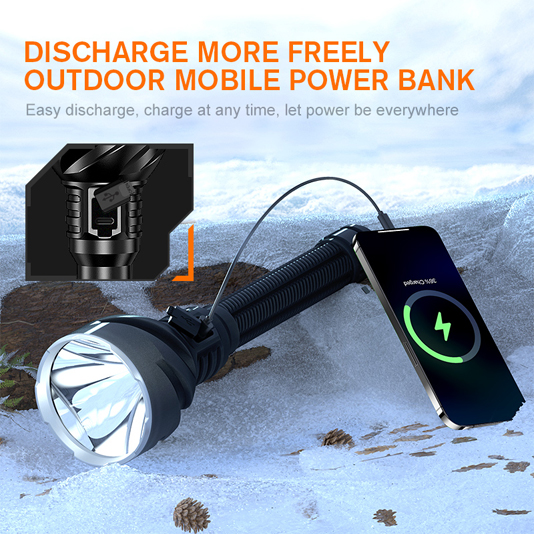

2. Multi-Functional Power Bank:

• Discharge mode (double-click to activate) provides 4.5V/2.4A output—charges phones or devices on the go.

3. Durable & Reliable:

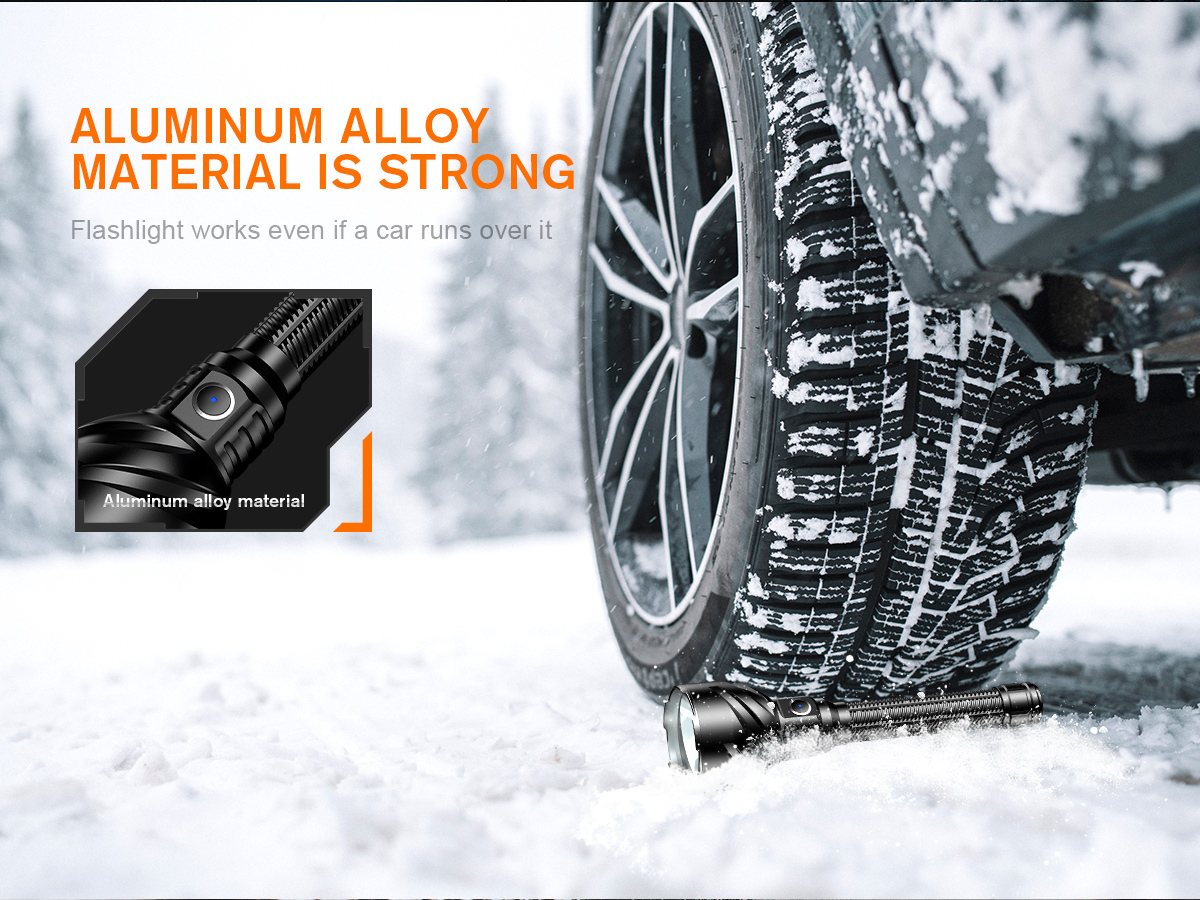

• T6061-T6 aluminum body with hard anodized finish—resists scratches and corrosion.

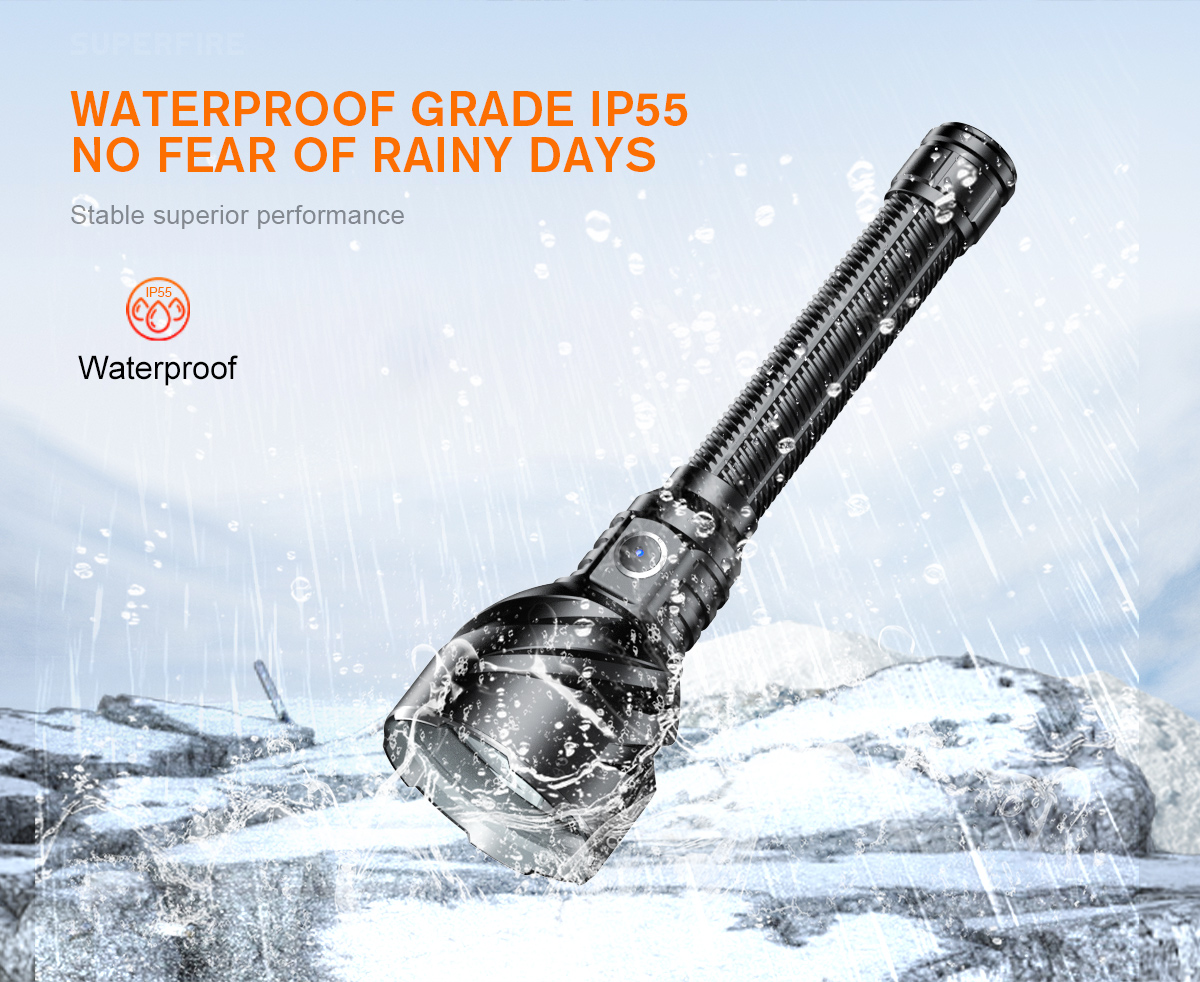

• IP55 water resistance and 1-meter drop protection—withstands rain, dust, and accidental drops.

4. Long-Lasting Battery:

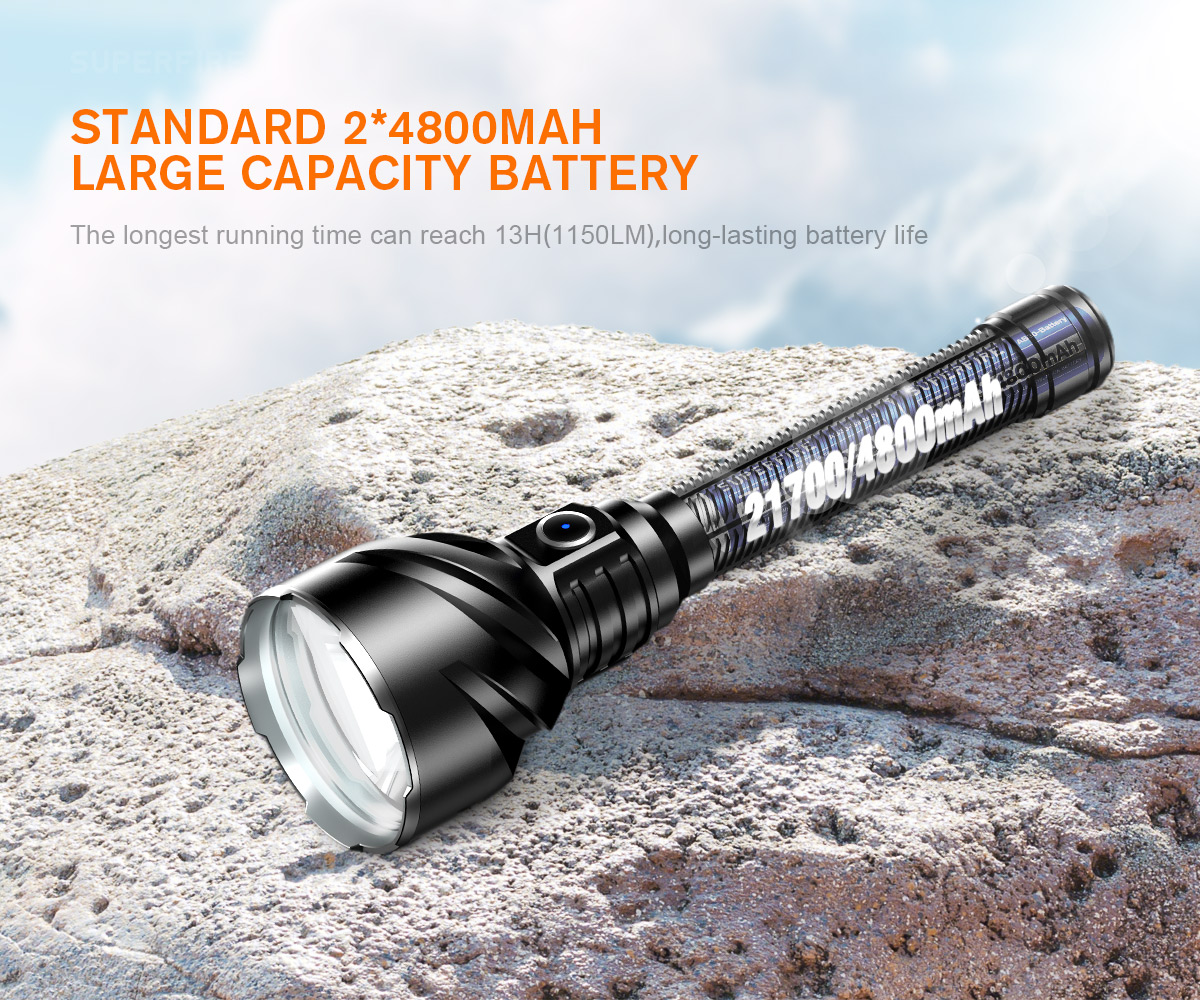

• External 2x 21700/4800mAh batteries (replaceable) for extended use; works with any 21700 batteries.

• Up to 298 minutes (≈5 hours) of runtime in High mode.

5. Convenient Charging:

• Type-C interface (5V/2A input) for fast, universal charging (compatible with phone chargers/power banks).

• Charging time: ≈289 minutes (≈4.8 hours); red/green indicators show charging status.

6. Safety Protections:

• Anti-reverse polarity, overcharge/over-discharge protection, low-voltage warning, and cut-off—ensures safe operation and extends battery life.

7. User-Friendly Design:

• 5 lighting modes (Low/Medium/High/Strobe/SOS) for all scenarios; long-press (3s) to turn off in any mode.

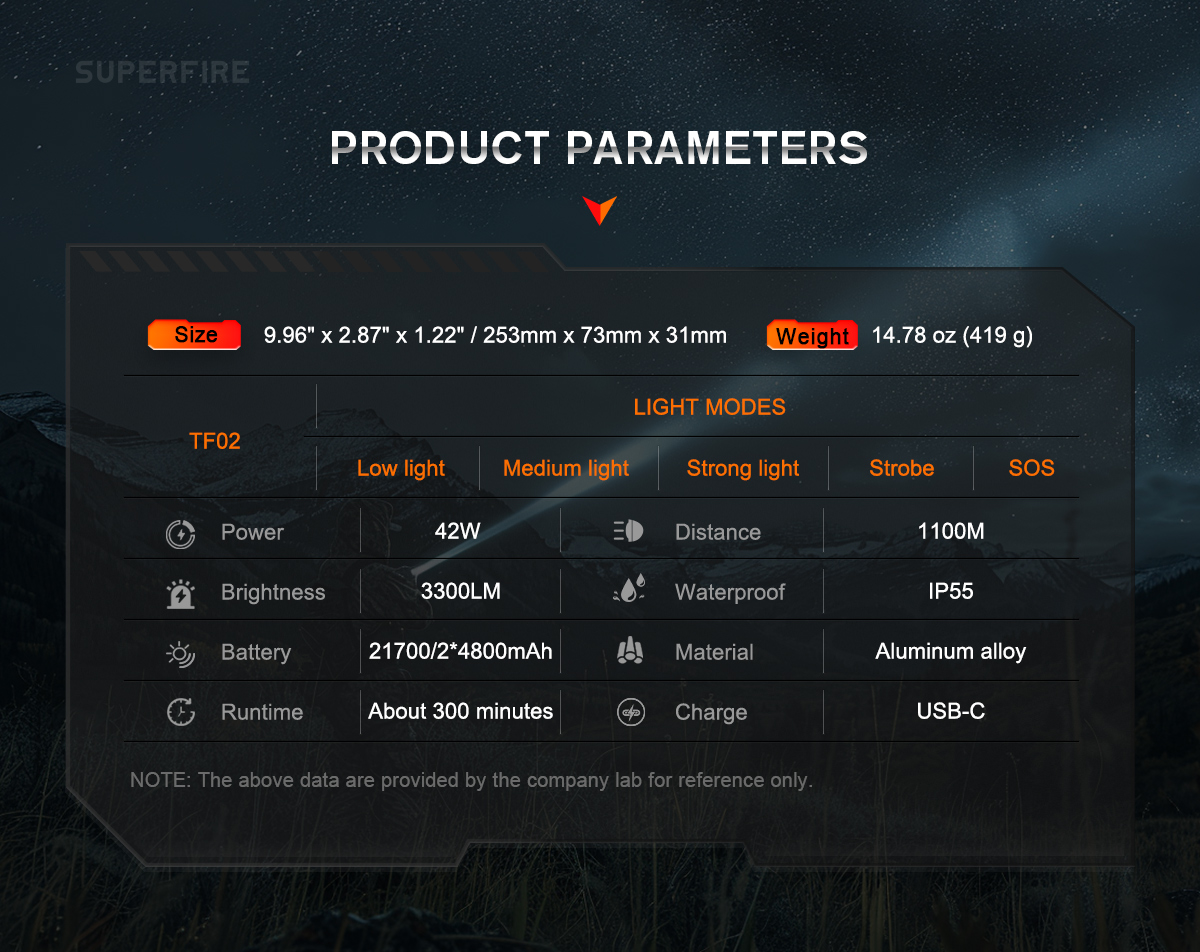

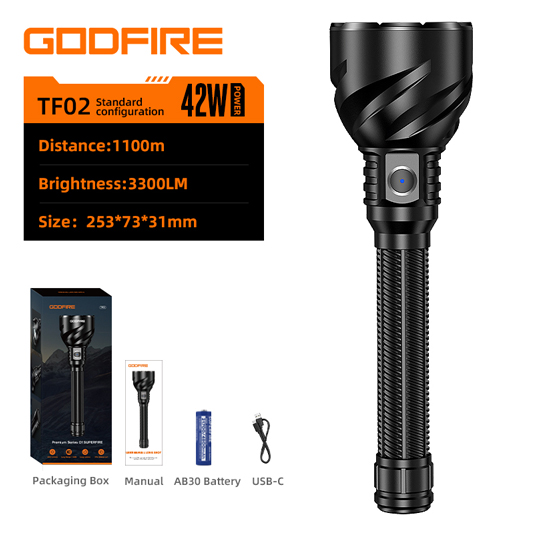

• Compact size (253×73×31mm) and lightweight (419g)—easy to carry in bags or hands.
